Mean Well LED Drivers

Affordable LED Power Supplies to power your LED Lighting.
Fully certified for use in Australia.

Australian Standard Power Supplies

At Platform Creative Pty Ltd we take pride in supplying only the highest quality products.
This can not be more valuable when we are talking LED Drivers/ LED Power Supplies.

As you may know there are many cheap imported LED drivers on the market that do not comply with Australian standards.

Platform Creative (Australia) only supply certified Mean Well LED Power Supplies
that come with either a 3, 5 or 7 year Warranty for peace of mind.

If you are looking for affordable solutions for powering your LED system then Mean Well LED Drivers are the only choice.

MeanWell 12v

MeanWell 24v

MeanWell DALI

Solar & Battery

Accessories

Mean Well GST Range

(indoor use only)

Our indoor range of 24v power supplies for LumiSheet™, LED modules and LED strip and more.

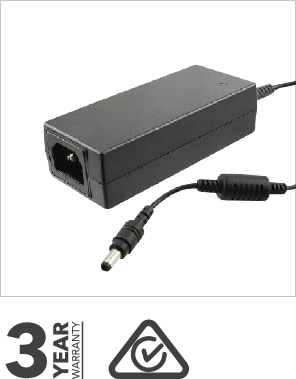

GST Series (indoor use)
Plug & Play DC Jack LED Power Supplies.

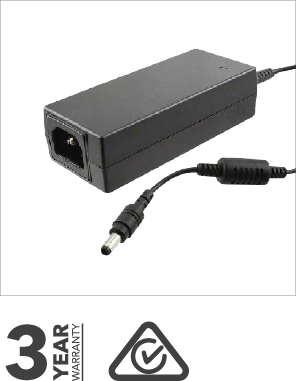

GST-40A24-P1J

Style	Indoor/ Desk Top
Input	90~264 VAC 0.5A
Output	24v 3.34A
Rated Output	40W
Output Type	2.1mm DC Jack
Dimming Option	N/A
Operating Temp	-30~ +70ºC*
Warranty	3 Years
IP Rating	<IP65
Certification	RCM,CE,UL,CCC,FCC,
	TÜV,PSE,KCC,EAC
Dimensions	125x50x31.5mm

Download

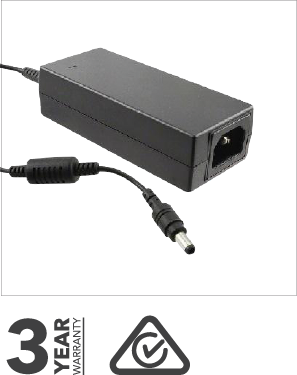

GST-60A24-P1J

Style	Indoor/ Desk Top
Input	90~264 VAC 1A
Output	24v 5A
Rated Output	60W
Output Type	2.1mm DC Jack
Dimming Option	N/A
Operating Temp	-30~ +70ºC*
Warranty	3 Years
IP Rating	<IP65
Certification	RCM,CE,UL,CCC,FCC,
	TÜV,PSE,KCC,EAC
Dimensions	125x50x31.5mm

Download

GST-90A24-P1M

Style	Indoor/ Desk Top
Input	90~264 VAC 0.6A
Output	24v 6.67A
Rated Output	80W
Output Type	2.5mm DC Jack
Dimming Option	N/A
Operating Temp	-30~ +70ºC*
Warranty	3 Years
IP Rating	<IP65
Certification	RCM,CE,UL,CCC,FCC,
	TÜV,PSE,KCC,EAC
Dimensions	145x60x32mm

Download

Mean Well PWM Range

(Dimmable LED Drivers for outdoor & indoor use)

Our indoor/outdoor range of 24v power supplies for LumiSheet™, LED modules and LED strip and more…

PWM Series (indoor/outdoor use) 1.8m flex with AU plug.
24v hard wire connection.

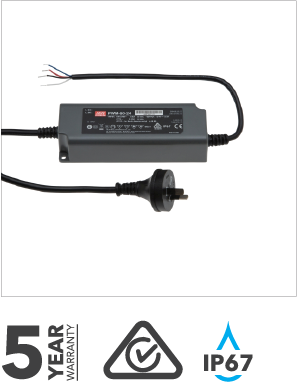

PWM-60-24 (60w)

Style	Indoor/ Outdoor
Input	90~305 VAC 0.4A
Output	24v 5A
Rated Output	60W
Output Type	PWM Output
Dimming Option	Yes
Operating Temp	-40~ +85ºC*
Warranty	5 Years
IP Rating	IP67
Certification	CE,CB,RCM
Dimensions	150x53x35mm

Download

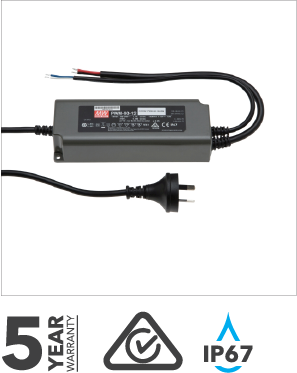

PWM-90-24 (90w)

Style	Indoor/ Desk Top
Input	90~305 VAC 0.5A
Output	24v 7.5A
Rated Output	90W
Output Type	PWM Output
Dimming Option	Yes
Operating Temp	-40~ +85ºC*
Warranty	5 Years
IP Rating	IP67
Certification	CE,CB,RCM
	TÜV,PSE,KCC,EAC
Dimensions	171x63x37.5mm

Download

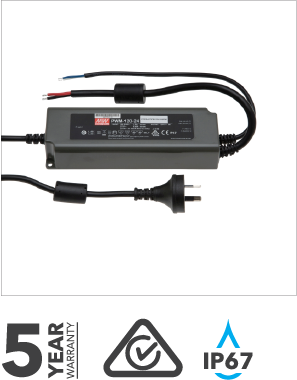

PWM-120-24 (120w)

Style	Indoor/ Outdoor
Input	90~305 VAC 0.65A
Output	24v 10A
Rated Output	120W
Output Type	PWM Output
Dimming Option	Yes
Operating Temp	-40~ +85ºC*
Warranty	5 Years
IP Rating	IP67
Certification	CE,CB,RCM
Dimensions	191x63x37.5mm

Download

Mean Well ELG Range

(Dimmable LED Drivers for outdoor & indoor use)

Our premium indoor/outdoor range of 24v power supplies for LumiSheet™, LED modules and LED strip and more…

ELG Series (indoor/outdoor use) 1.8m flex with AU plug
24v hard wire connection

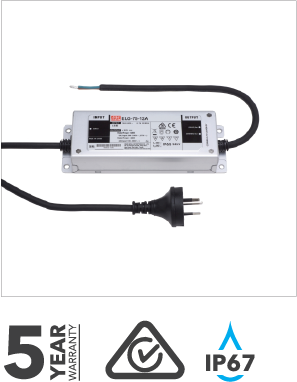

ELG-75-24B (60w)

Style	Indoor/ Outdoor
Input	100~305 VAC 0.45A
Output	24v 5A
Rated Output	60W
Output Type	Constant Voltage/ CC
Dimming Option	Yes 0-10v, PWM, Res
Operating Temp	-40~ +85ºC*
Warranty	5 Years
IP Rating	IP67
Certification	CE,CB,RCM
Dimensions	180x63x35.5mm

Download

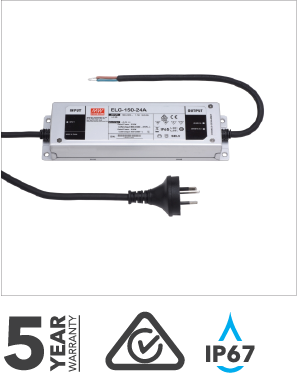

ELG-150-24B (120w)

Style	Outdoor/ Indoor
Input	100~305 VAC 0.9A
Output	24v 10A
Rated Output	120W
Output Type	Constant Voltage/ CC
Dimming Option	Yes 0-10v, PWM, Res
Operating Temp	-40~ +85ºC*
Warranty	5 Years
IP Rating	IP67
Certification	CE, CB, RCM
Dimensions	219x63x35.5mm

Download

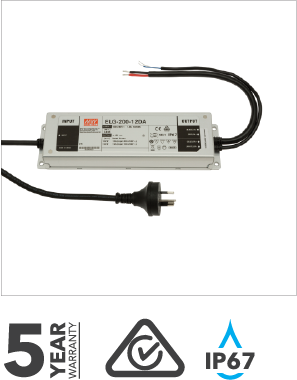

ELG-200-24B (192w)

Style	Outdoor/ Indoor
Input	100~305 VAC 1.2A
Output	24v 16A
Rated Output	192W
Output Type	Constant Voltage/ CC
Dimming Option	Yes 0-10v, PWM, Res
Operating Temp	-40~ +85ºC*
Warranty	5 Years
IP Rating	IP67
Certification	CE, CB, RCM
Dimensions	244x71x37.5mm

Download

Mean Well HLG Range

(Dimmable LED Drivers for outdoor & indoor use)

Our premium indoor/outdoor range of 24v power supplies for LumiSheet™, LED modules and LED strip and more…

HLG Series (indoor/outdoor use) 1.8m flex with AU plug
24v hard wire connection

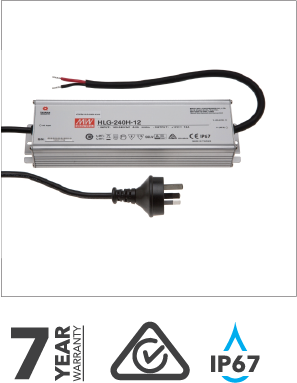

HLG-240H-24B (192w)

Style	Indoor/ Outdoor
Input	90~305 VAC 2A
Output	24v 16A
Rated Output	192W
Output Type	Constant Voltage/ CC
Dimming Option	Yes 0-10v, PWM, Res
Operating Temp	-40~ +85ºC*
Warranty	7 Years
IP Rating	IP67
Certification	CE, CB, RCM
Dimensions	245x68x39mm

Download

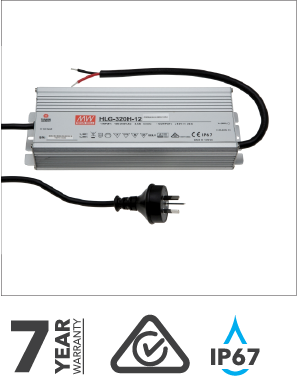

HLG-320H-24B (264w)

Style	Outdoor/ Indoor
Input	90~305 VAC 1.65A
Output	24v 22A
Rated Output	264W
Output Type	Constant Voltage/ CC
Dimming Option	Yes 0-10v, PWM, Res
Operating Temp	-40~ +90ºC*
Warranty	7 Years
IP Rating	IP67
Certification	CE, CB, RCM
Dimensions	252x90x44mm

Download

HLG-600H-24B (480w)

Style	Outdoor/ Indoor
Input	90~305 VAC 3.3A
Output	24v 40A
Rated Output	480W
Output Type	Constant Voltage/ CC
Dimming Option	Yes 0-10v, PWM, Res
Operating Temp	-40~ +90ºC*
Warranty	7 Years
IP Rating	IP67
Certification	CE, CB, RCM
Dimensions	280x144x28.5mm

Download
